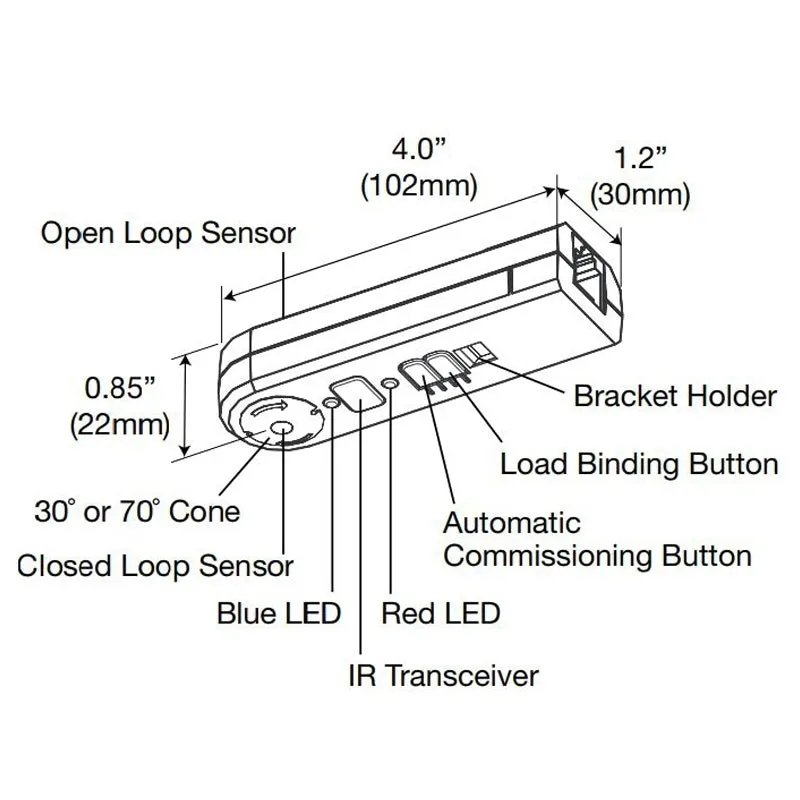

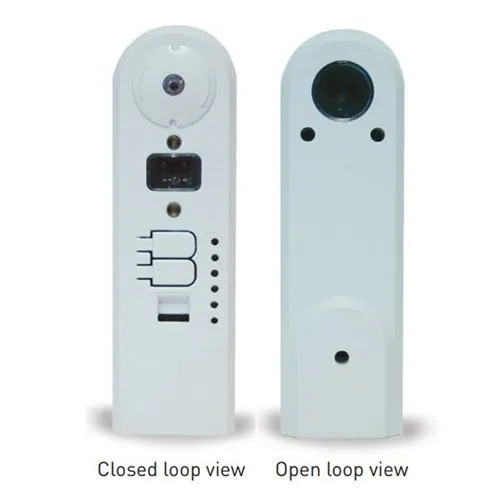

cThe LMLS-600 is a dual loop photosensor that automatically switches or dims one zone of lighting based on ambient light and daylight levels. It has two silicon photodiodes with an extended range of 1-10,000 footcandles (fc) and features photopic correction to mimic the human eye?™s perception of daylight. The LMLS-600 is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers.

Features:

• Type: Single zone
• Color: White
• Typical Applications: Spaces with skylights, Warehouses, Big box retail stores
• LightOutput 1FCD: Switching and Dimming
• Votlage: 24VDC
• Current consumption: 7 mA
• Can be calibrated in any daylight condition
• Test Mode override of programmed time delay allows easy verification of selected settings
• Infrared (IR) transceiver for wireless configuration and control
• Recalibrates every night to account for reflectance changes within the space
• Compatible with DLM wall switches for manual override, if desired
• LED status indicators
• RJ45 jack for connection to free-topology Cat 5e DLM local network

Model:

LMLS-600
