Product Details
＋
SLM-PR-112S-A

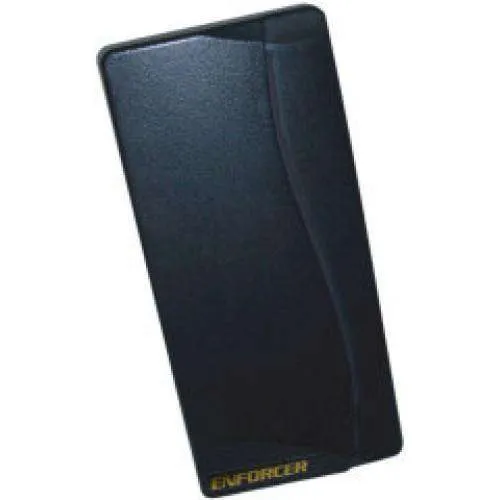

The new ENFORCER Proximity Reader provides an inexpensive, flexible solution for controlled access. The unit combines simple installation, quick programming, and high reliability.
- Stand-alone Proximity Card Reader
-
Use in small businesses, homes, gates/parking structures, apartments and
other locations -
Sealed and weatherproof (IP67). Mounts easily to interior and
exterior wall -

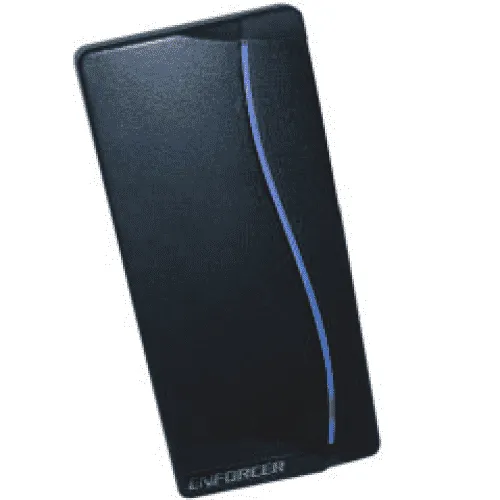

Attractive tri-color wave shaped LEDs status bar indicates proximity reader's mode
and status -
- On/Valid Card Indicator
-
- Programming Mode
-
- Invalid Card
-
Output relay for either time (1 to 180 seconds) or
"Toggle" mode -
Egress input to exit the protected area without using the
proximity reader -
Buzzer is programmable for audible confirmation or
silent mode - Up to 100 user cards can be programmed
-
User cards easily deleted. Delete a single card,
or all cards -
Up to 5 "Master" cards can

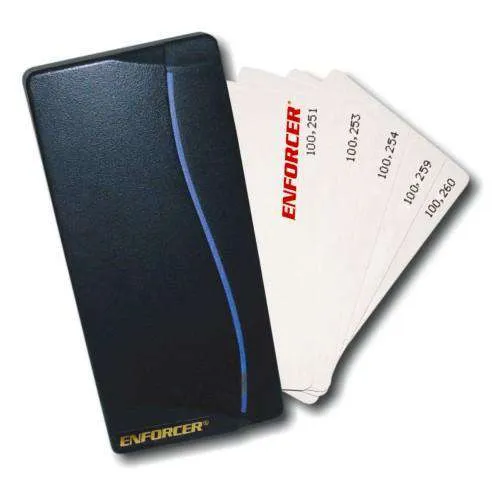

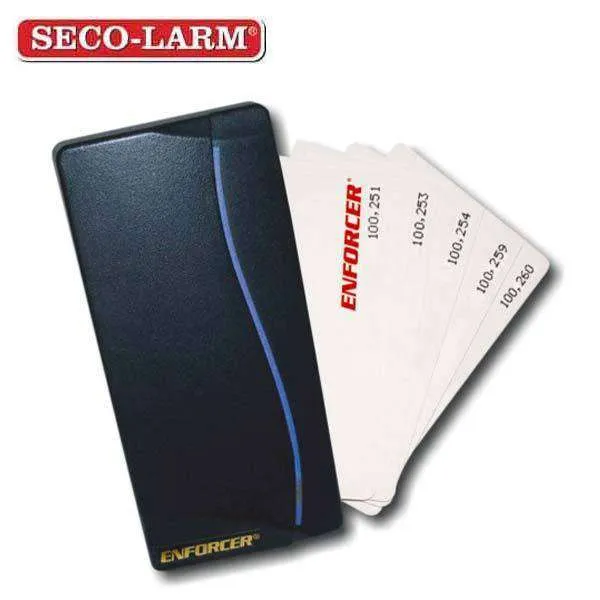

be programmed - 10 Cards included
| Operating Voltage | 12VDC |
| Current Draw- Active | 200mA @ 12VDC |
| Current Draw- Standby | 80mA @ 12VDC |
| Transmit Frequency | 125kHz |
| User Card Read Range | 6" (15cm) |
| Master Card Limit | 5 cards |
| User Card Limit | 100 Cards |
| Output | 1 Relay (NO/NC/COM) |
| Contact Rating | 1A@30V |
| Relay Time Delay | 1~180 s / Toggle Mode |
| Operating Temperature | -4°~158° F (-20°~70° C) |
| IP Rating | IP67 |
| Dimensions | 3-11/16"x1-3/4"x5/8" (95x44x17 mm) |
