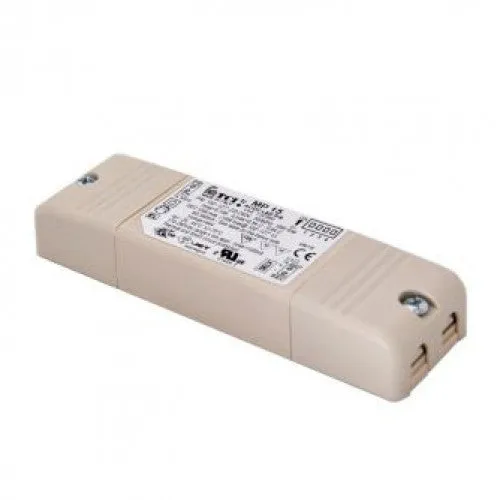

LuxR Lighting LuxR-MP15 Driver

Switchable driver 60-360mA ideal for fine tuning installations using Micro or M1 products.

Wide voltage range of 2-44 V means you can run from 1-14 luminaires on a single driver, wired in series.

Specifications

• Current setting: 60mA - 360mA settable in 20mA steps
• Voltage range (230V): 2V - 44V max
• Voltage range (110V): 2V - 28V max
• Max no. luminaires (230V): 14 luminaires @ 360mA (for 3Vf LEDs) with no allowance for volt drop
• Max no. luminaires (110V): 9 luminaires @ 360mA (for 3Vf LEDs) with no allowance for volt drop
• Max no. luminaires (230V): 7 luminaires @ 360mA (for 6Vf LEDs) with no allowance for volt drop
• Max no. luminaires (110V): 4 luminaires @ 360mA (for 6Vf LEDs) with no allowance for volt drop
• Terminals: Input and output terminal blocks wire cross-section up to 2,5 mm2 AWG13
• IP rating: IP20
• Protection: Double insulated Class II , Isolated SELV output
• L x W x h: 115mm x 34mm x 19mm
• Warrranty: 5 years
• Standards: EN 50172 (VDE0108), EN 55015, EN 60598-2-22, EN 61000-3-2, EN 61000-3-3,EN 61347-1, EN 61347-2-13, EN 61547, VDE 0710-T14, UL Recognized
