Product Details
＋

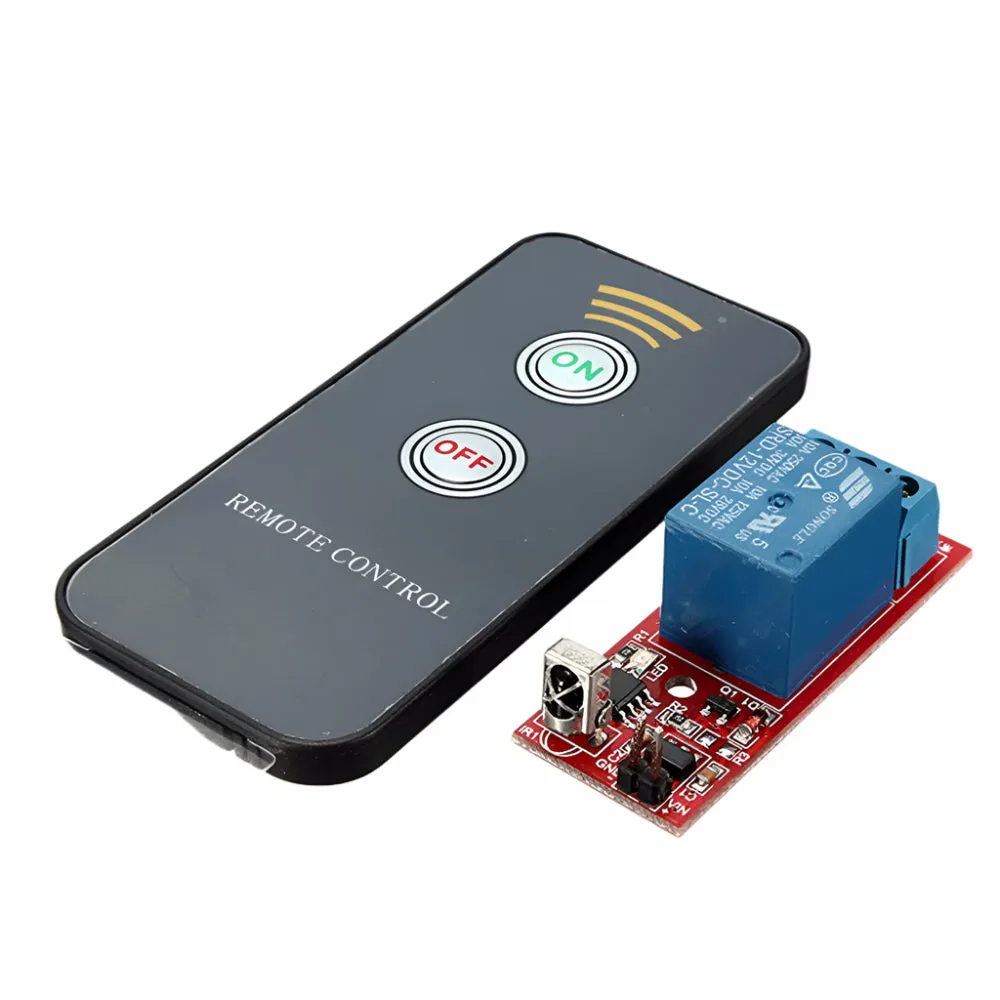

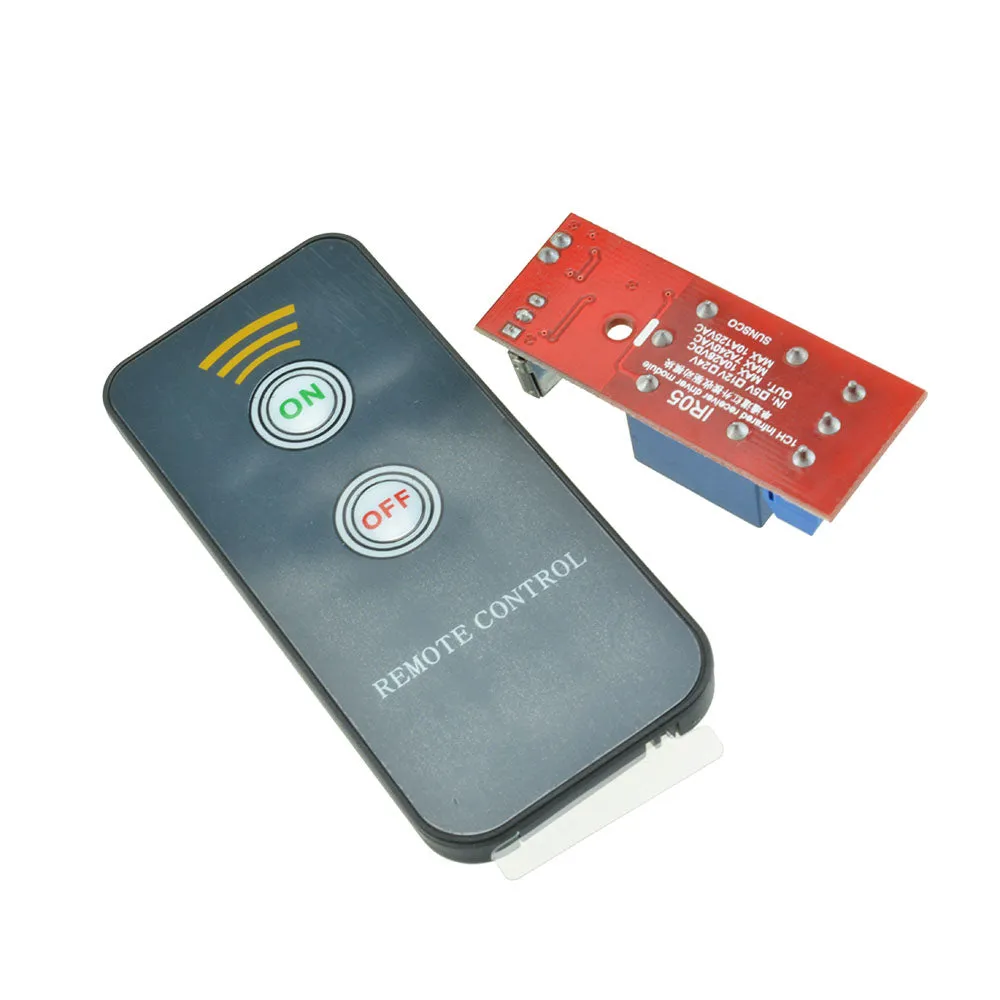

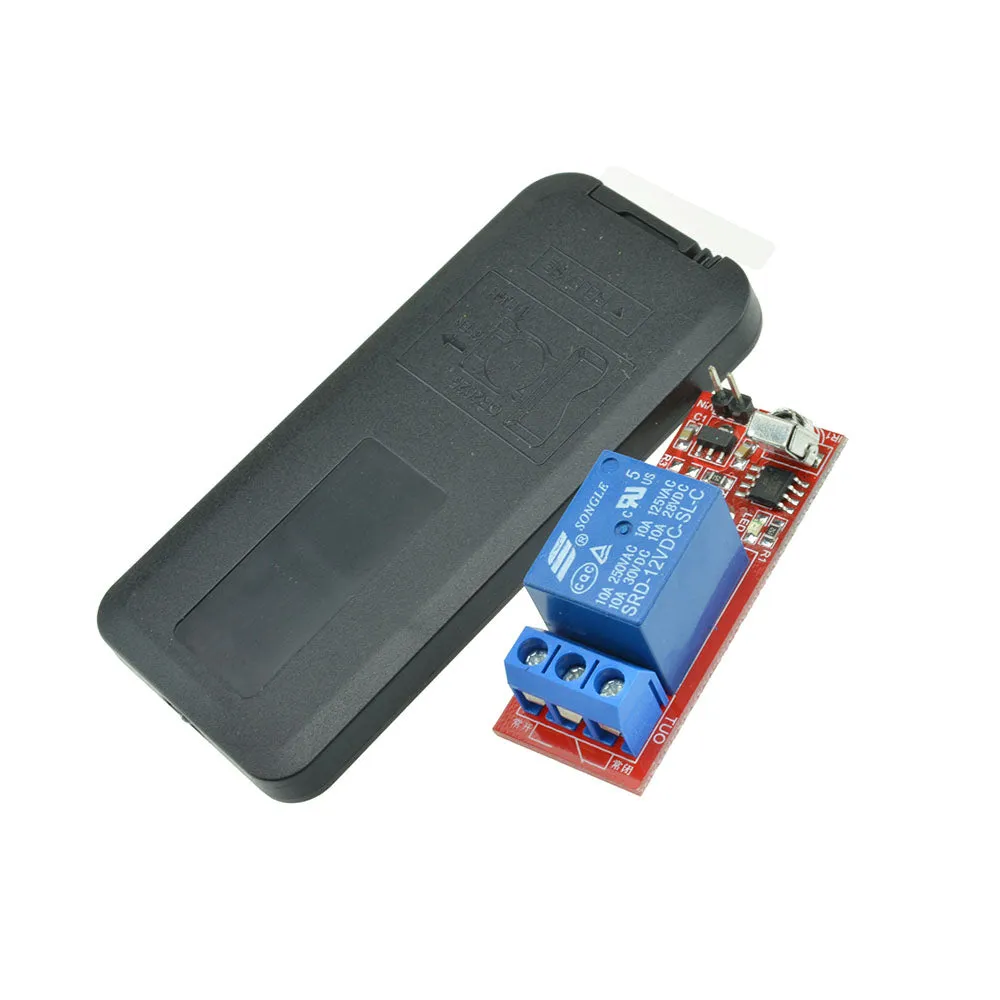

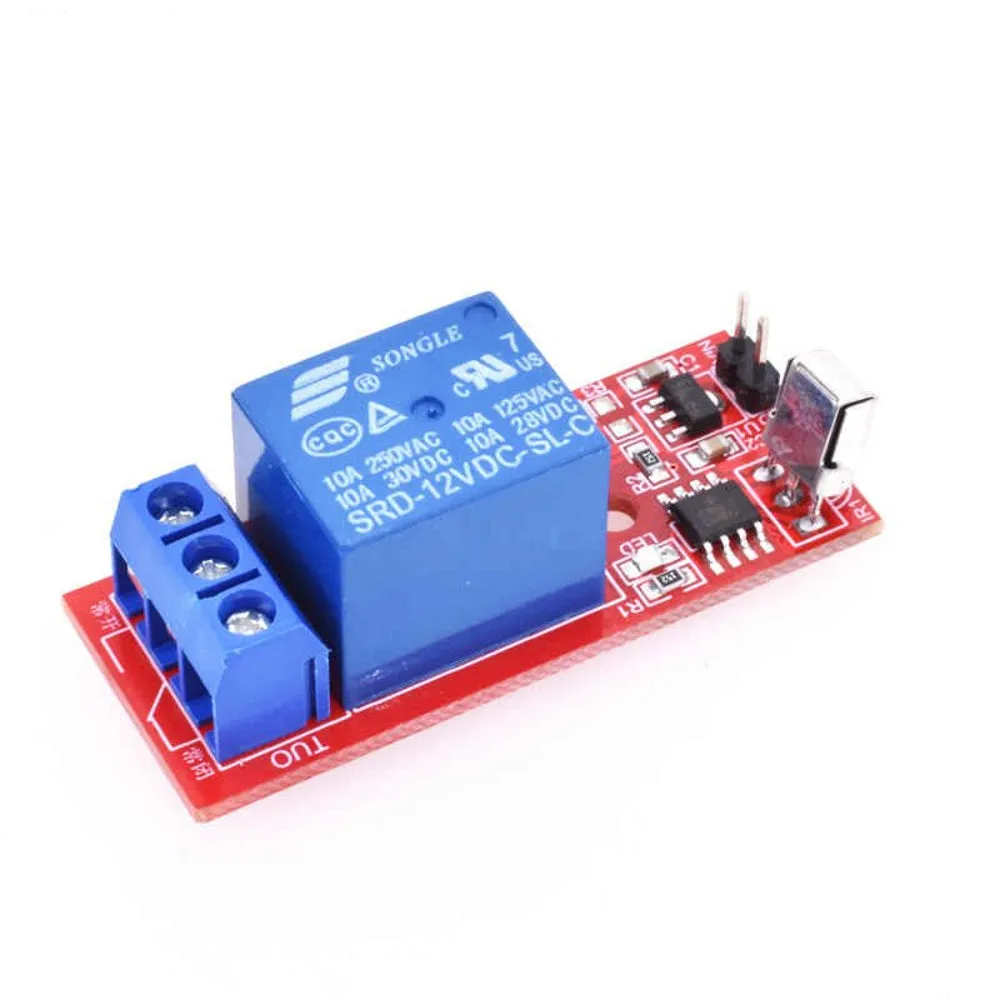

This 12V One Channel IR Wireless Relay Module with Remote Control is a one-channel latching relay module. The output of the module is a passive output and it can be controlled by its 2-button IR wireless controller when the module is powered on. The module comes equipped with suitable remote control. It also can drive most household electrical appliances. The operating voltage for this module is 12VDC
Also, the module comes with a dedicated remote. Moreover, the relay used in this module is a high current relay.
There are indicator LEDs on the module for power output status.
The application for this module includes different devices with different current ratings.
Technical Details
- Operating Voltage (VDC) : 12
- Supply Current (A) : 0.07
- Operating Temperature (°C) : -40 to 90
- Maximum Supported Output : 10A 28VDC
7A 240VAC
10A 125VAC - Operating Distance Range (Meter) : 1 ~ 5
- Storage condition (℃) : -40 to 80
Features
- Work status: Self-locking
- Dedicated remote.
- Indicator LEDs.
- Ideal for home automation.
Physical Attributes
- L x W x H (mm): 55 x 40 x 18
- Weight (gm) : 43
Package Includes
- 1 x DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control
