Cherne® 270067 6 IN. TEST-BALL® PLUG, Single-size

Name: Cherne® 270067 6 IN. TEST-BALL® PLUG, Single-size
SKU: 1361288

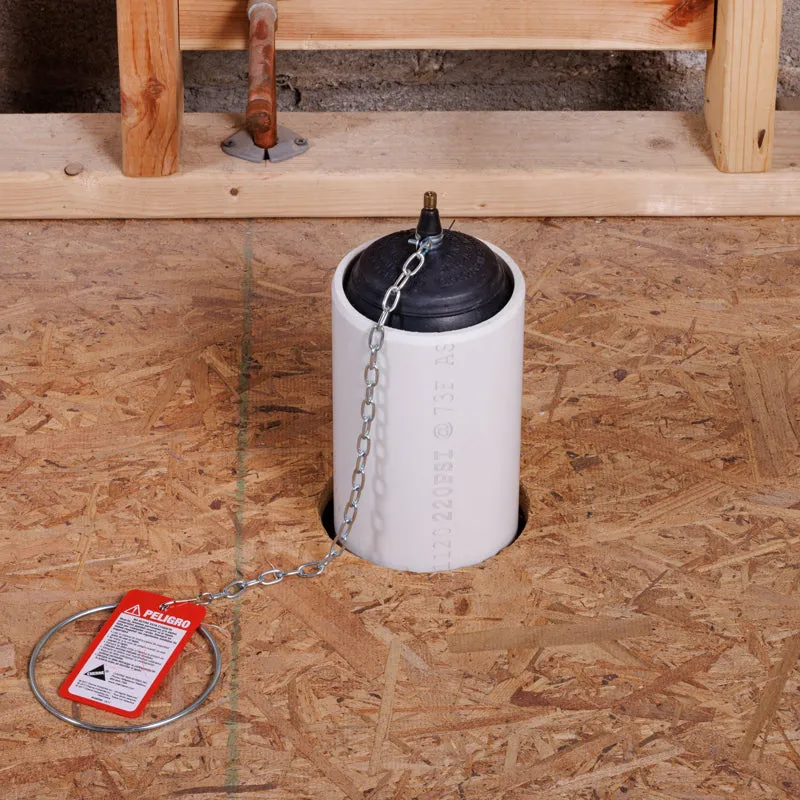

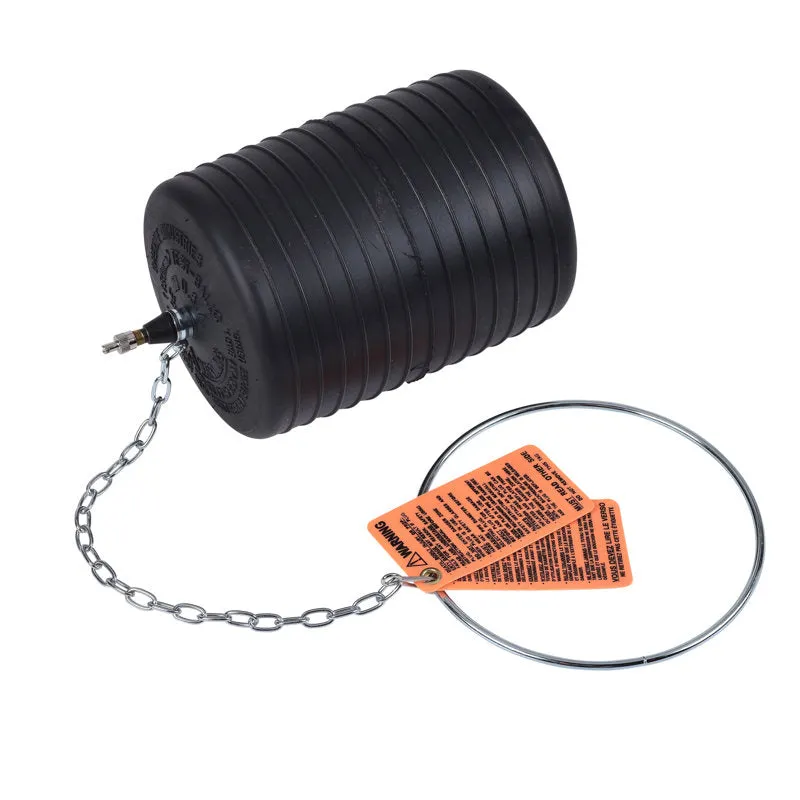

Cherne® Single-Size Test-Ball® Plugs are expandable rubber test plugs designed to test drain, vent and waste systems in every type of pipe. Utilizing a standard tire air fitting for easy connections, its inflatable design can be inserted through a test tee to seal out-of-round pipe and hard-to-access openings. These plumbing test plugs are available in a variety of nominal sizes to accommodate your DWV testing needs. Cherne Industries is a global leader in pipe plug, blocking and testing.

Product Specifications:

Nominal Size: 6 in. (150 mm)
Chain Eye Bolts: Ring and Chain
Deflated Diameter: 5.25 in.
Deflated Length: 9 in.
Inflation Pressure: 30 psi (2,1 bar)
Inflation Thread: 5.25 in. (135 mm)
Maximum Back Pressure: 13 psi (0,9 bar)/30 ft. (9.1 M)
Usage Range: 5.44 in. - 6.25 in. (138 - 159 mm)
Weight: 1.9 lb.
