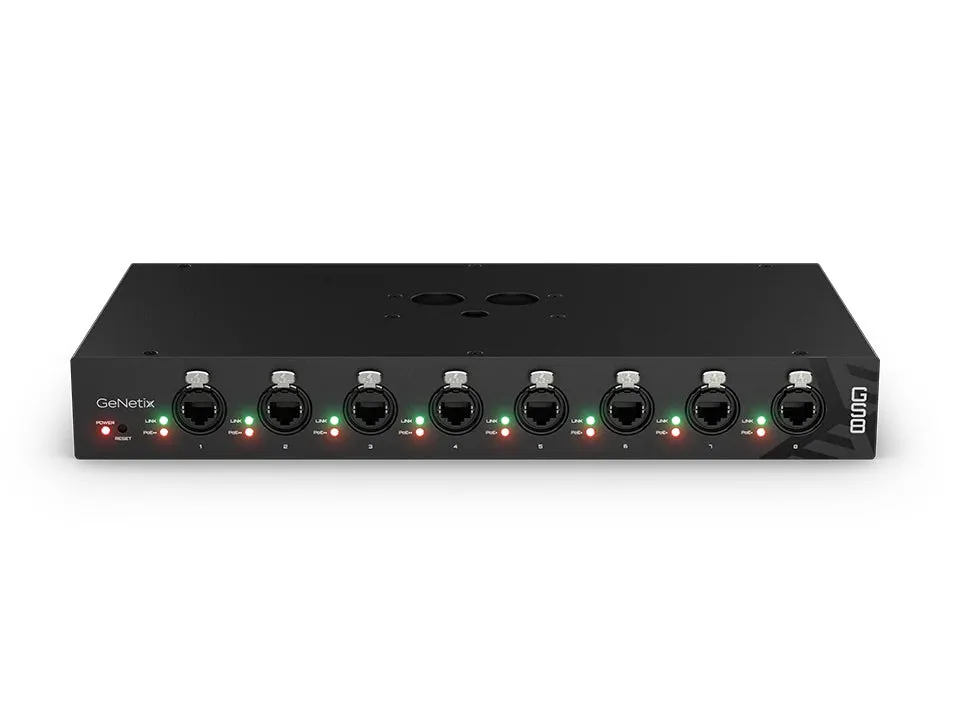

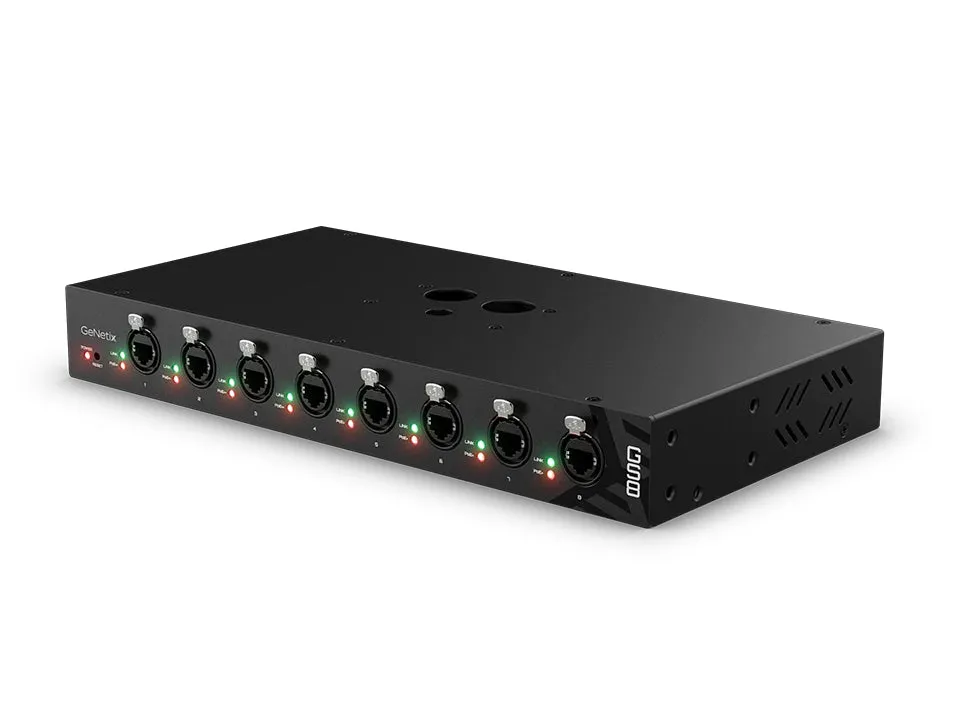

GeNetix Switch 8 is an eight-port unmanaged Gigabit PoE network switch that provides a total output of up to 200W of Power over Ethernet across its 8 ports. Ports 1-4 support IEEE 802.3bt up to 100W per port. In modes A & B, all ports support 802.3af and 802.3at standards. This rack mountable switch features a rear PowerCon True1 Mains input connector and is also truss mountable via its M12 threaded insert.

Features

• 200w 8 port Unmanaged Gigabit PoE Network Switch
• Supports Multiple PoE Specifications: Ports 1-4 802.3bt and on all ports 802.3af, 802.3at in Modes A & B
• Ports 1-4 Support PoE (up to 100w per port), Ports 5-8 PoE (up to 30w per port) up to 200w switch limit
• Locking Ethernet Connectors

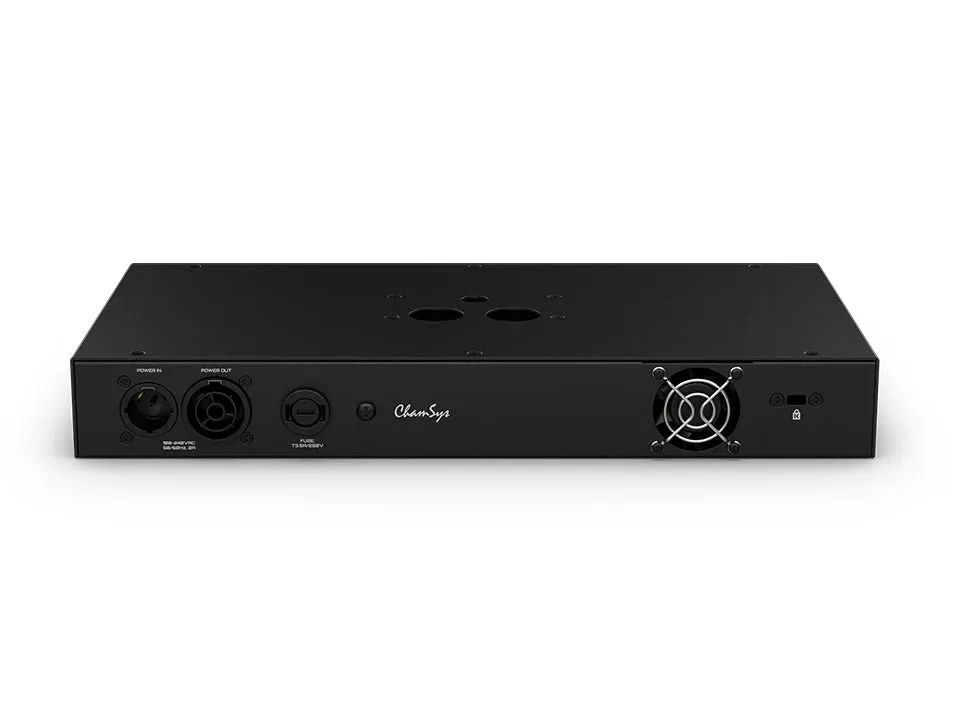

• PowerCon True1 Top Mains Input
• Desktop or 19” Rack Mountable (1U)
• M12 Threaded Insert for Clamp Mounting

Specifications

• Hardware
  • Network Ports: 8
  • Mains Input: PowerCon True1 Top
  • Port Status LEDs: Yes
  • 802.3af and 802.3at in Modes A & B: Yes
  • 802.3bt up to 100W per Port: Ports 1-4
  • Removable Rack Ears: Yes
• Software
  • Gigabit Ethernet: Yes
  • Unmanaged Network Switch: Yes
• Dimensions (HxWxD):
  • Withouth Rack Ears: 1.69 x 12.99 x 6.77 inch (43 x 330 x 172 mm)
  • With Rack Ears: 1.69 x 18.98 x 6.77 inch (43 x 482 x 172 mm)
• Weight: 4.52 lb (2.05 kg)

What's Included

• Neutrik powerCON TRUE1 Power Cable
