Rugged yet elegant… that's not just a description of the Blizzard Modern Interpretive Dance Troop.
RGB WW 4-in-1 LEDs

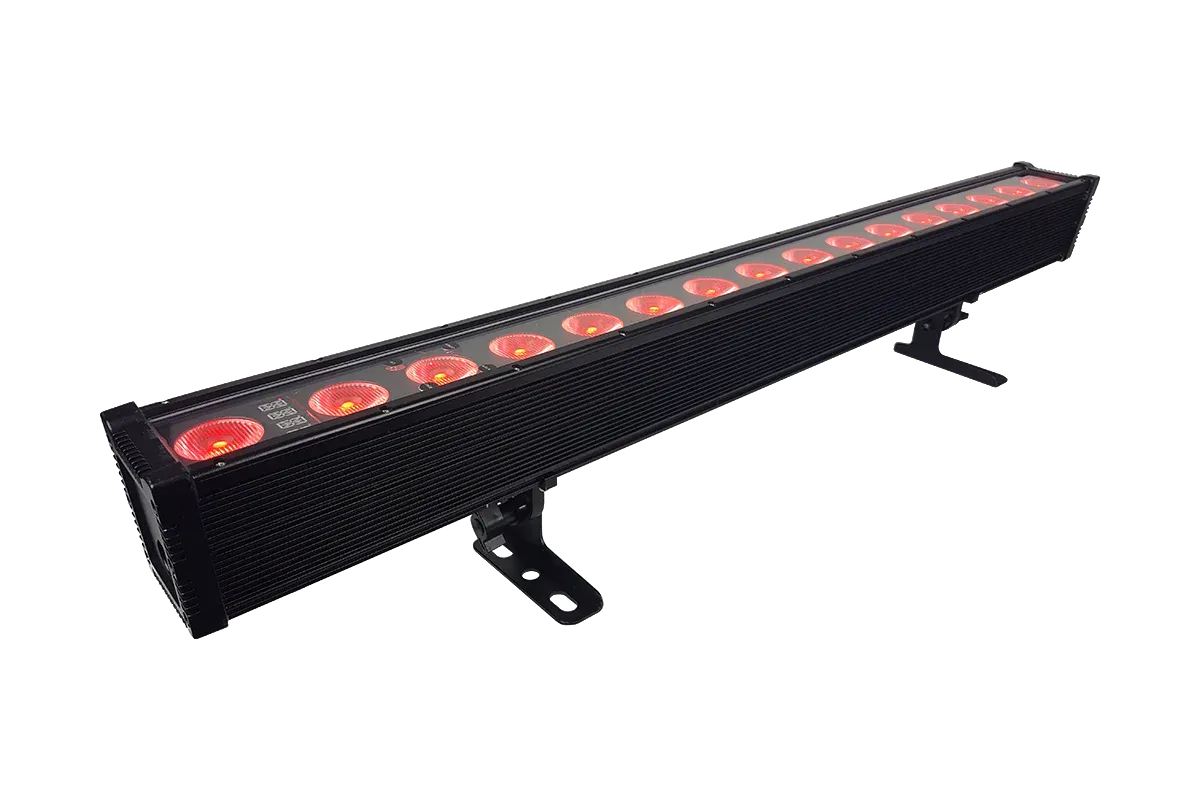

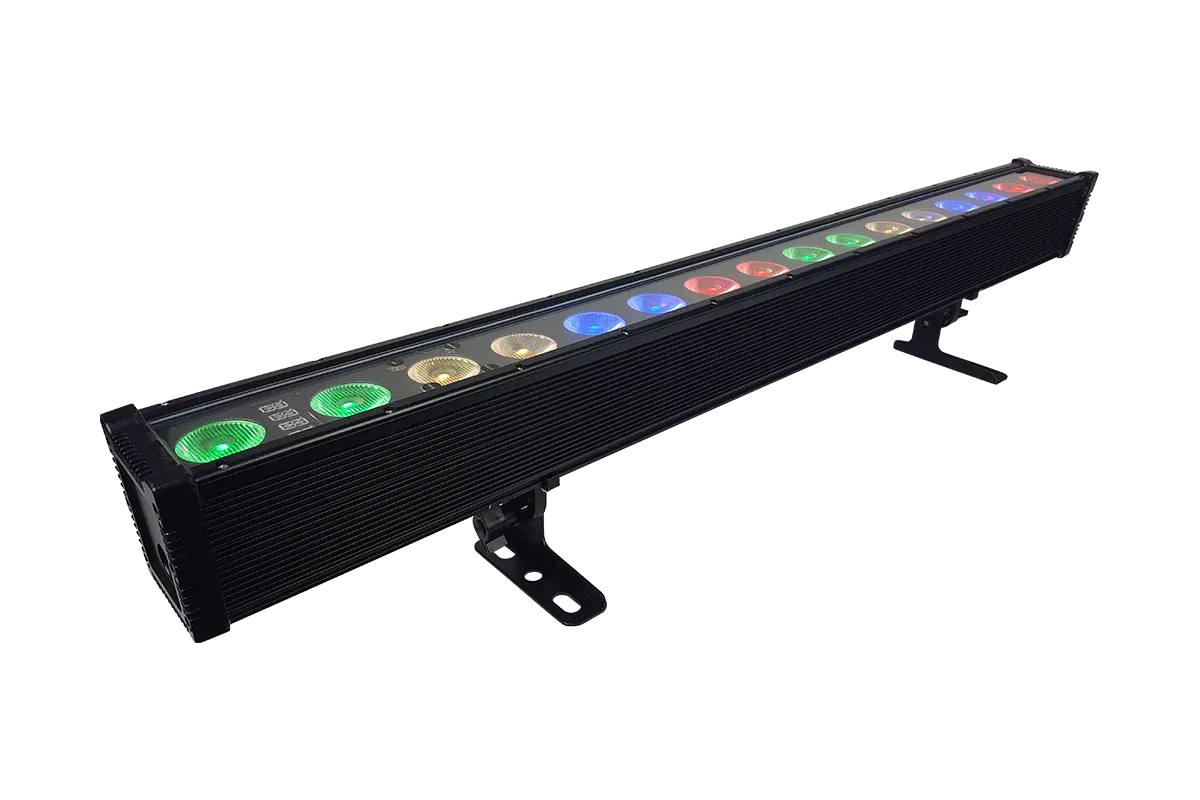

It also describes the Motif™ Atelier™ 16FX. Our IP65-rated 1-meter wash offers RGB WW 4-in-1 LED color mixing and pixel effects via 16x 15W, individually controllable high output LEDs.
Asymmetrical 10x40° Optics
Motif™ Atelier™ 16FX innovative asymmetrical 10x40° optics are ideally suited for vertical wash applications along walls, scrims, and other boundaries. It projects a 10° soft edge parallel to minimize spill away. Atelier's™ 40° angle is perpendicular; its long axis mixes individual LEDs into a homogeneous wash or allows multiple swaths of color to overlap for spectacular gradients and pixel effects.
Main Features:
- Color mixing via 16x 15W RGB WW 4-in-1 LEDs
- 10-40° asymmetrical beam spread
- Wash effect, grouped pixels, and pixel mapping
- Virtual color wheel effects
- 33 built-in automated programs, 10 custom colors, and 3 custom program banks
- RGB WW color mixing ability in standalone mode
- Custom global color calibration settings
- Variable electronic dimmer & multiple strobe effects
- Sync custom settings between fixtures via DMX
- Fixture ID addressing
- LED control panel with touch sensitive buttons
- Durable cast aluminum housing
- Tempered glass lens and watertight internal gaskets
- Efficient convection cooling for zero fan noise
- Mounting bracket with locking knobs
Product Specifications:
- Optical
- 16x 15W RGB WW 4-in-1 LEDs, (2700k Warm White)
- 10-40° asymmetrical degree beam
- Flicker-free LEDs
- Luminous intensity: 4,358 Lux (404.9 fc) @ 2m | 1,021 Lux (94.9 fc) @ 4m
Weight & Dimensions
- Width: 39.3" (997 mm)
- Depth: 3.7" (94.7 mm)
- Height: 7.1" (179.9 mm)
- Bracket depth: 5.2" (132.3 mm)
- Weight: 15.4 lbs. (7 kg)
Control
- Protocol: USITT DMX-512
- 4/5/10/16/24/40 or 72-channel DMX
- Standalone, master/slave, color preset, auto mode
- 3-pin DMX input/output
- 4-button LED control menu display
Power & Current
- 100-264VAC, 47-63 Hz
- 214W, 1.8A, PF: .99
Warranty
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
It mimics tungsten-source lighting to produce soft, warm white tones or add more warmth to the blend of any RGB mixed color.
