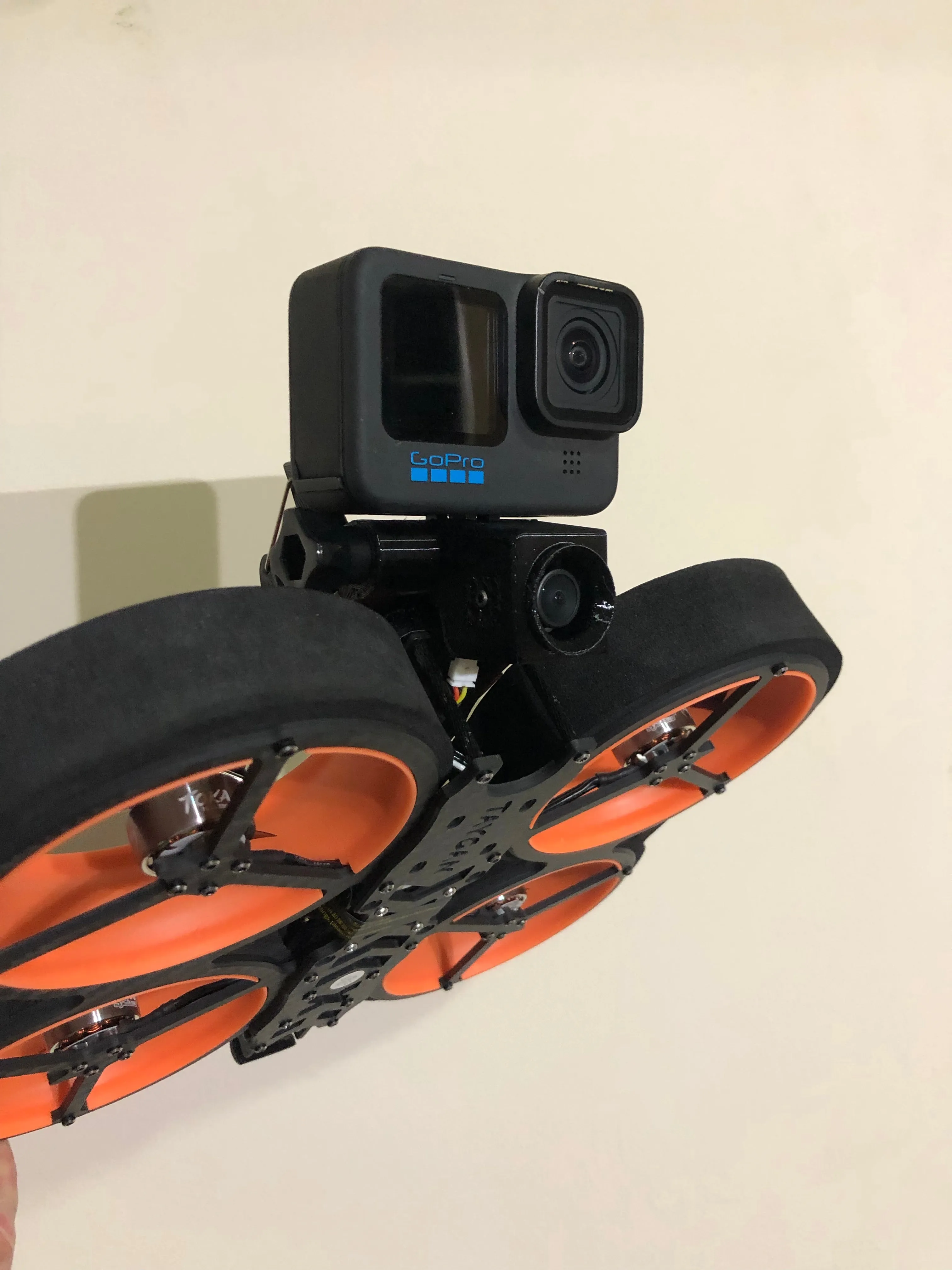

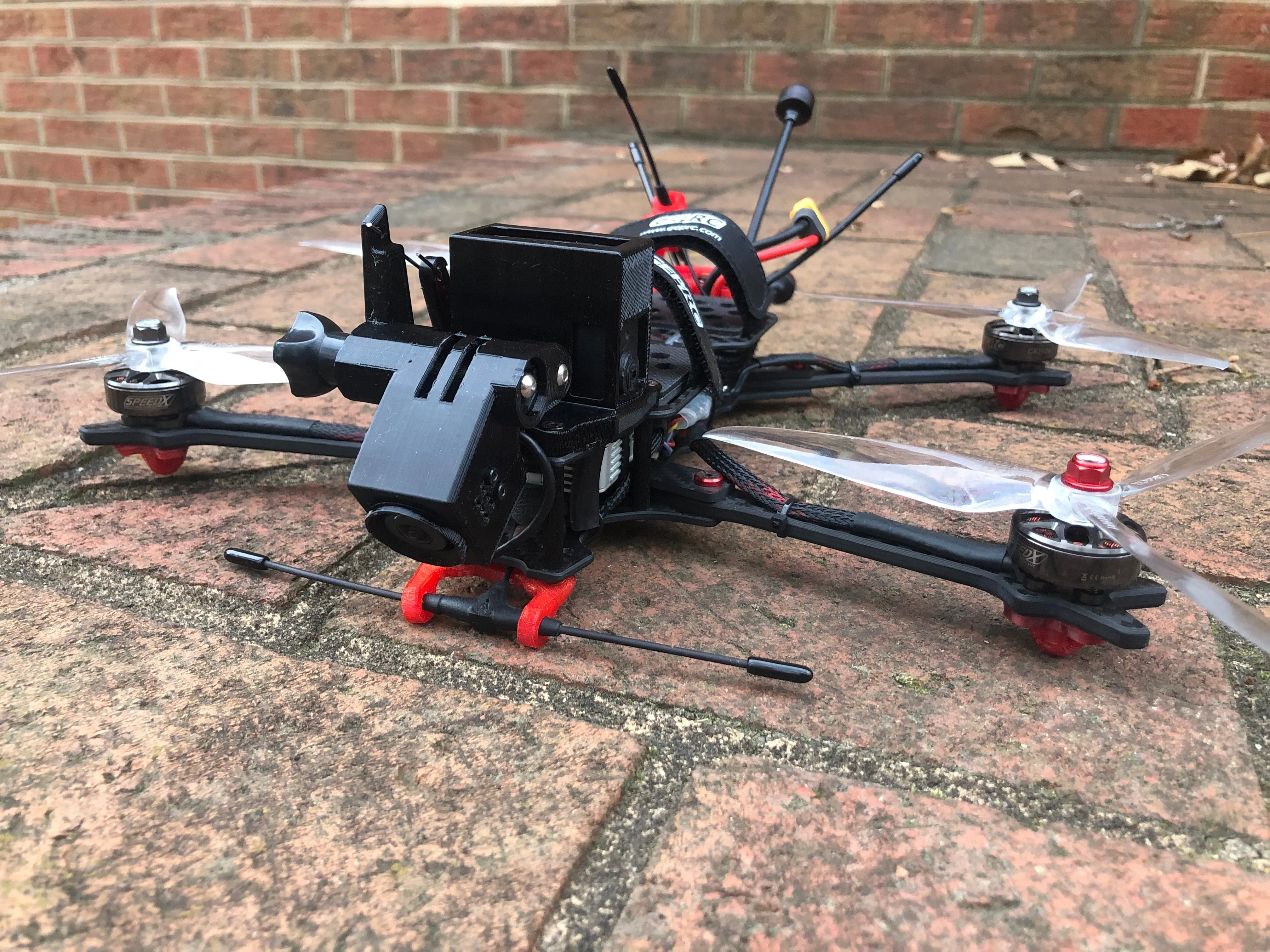

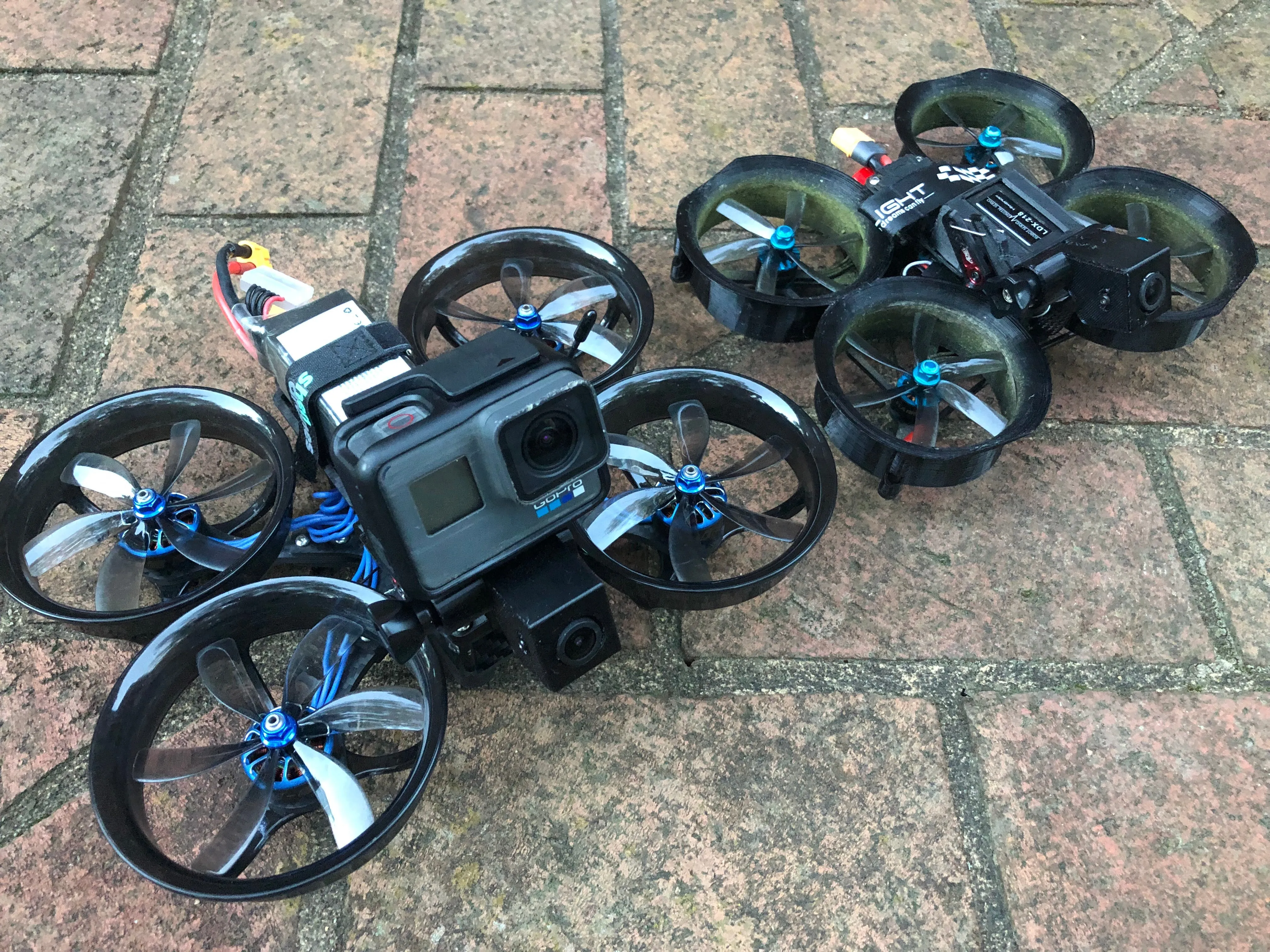

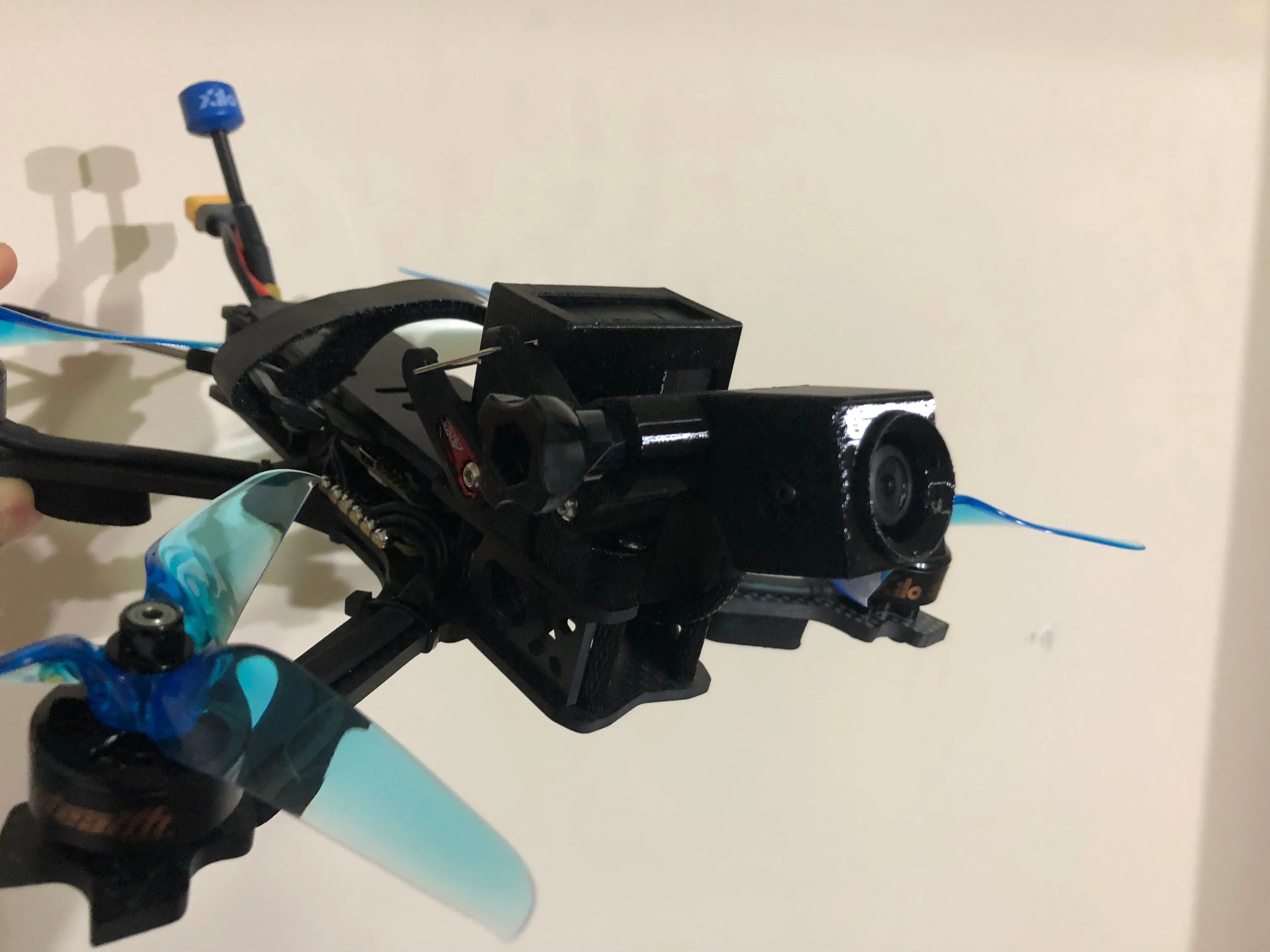

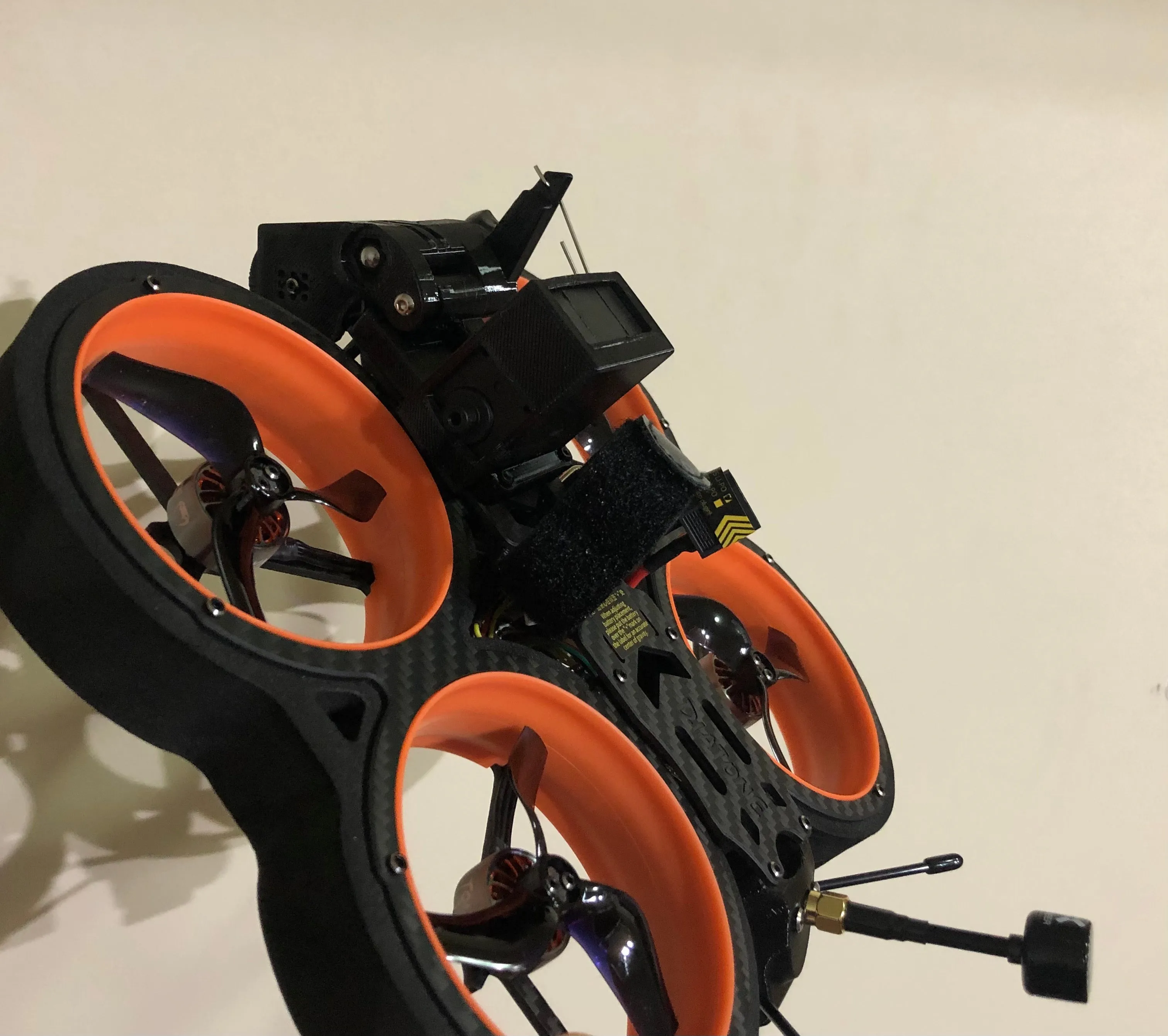

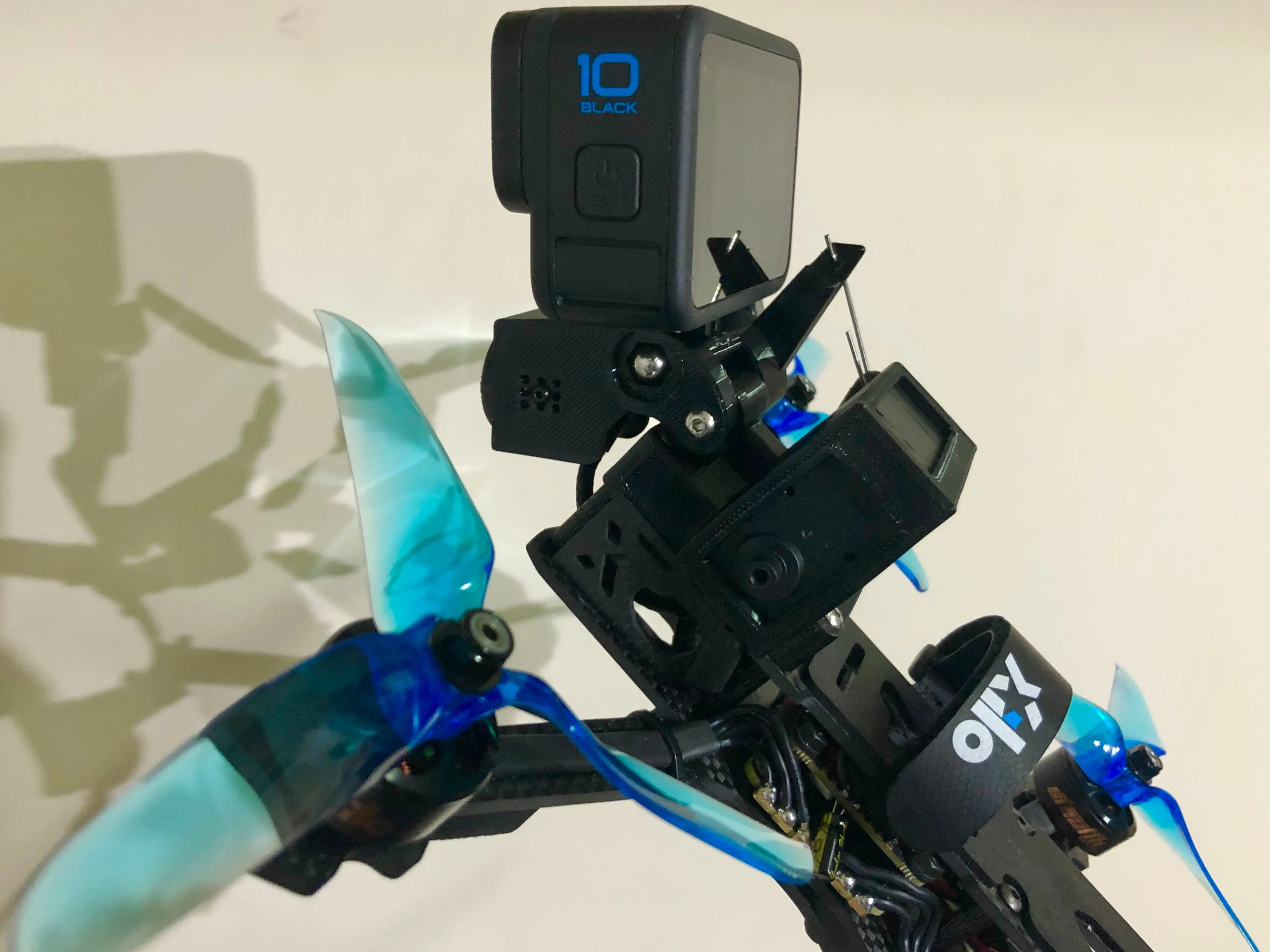

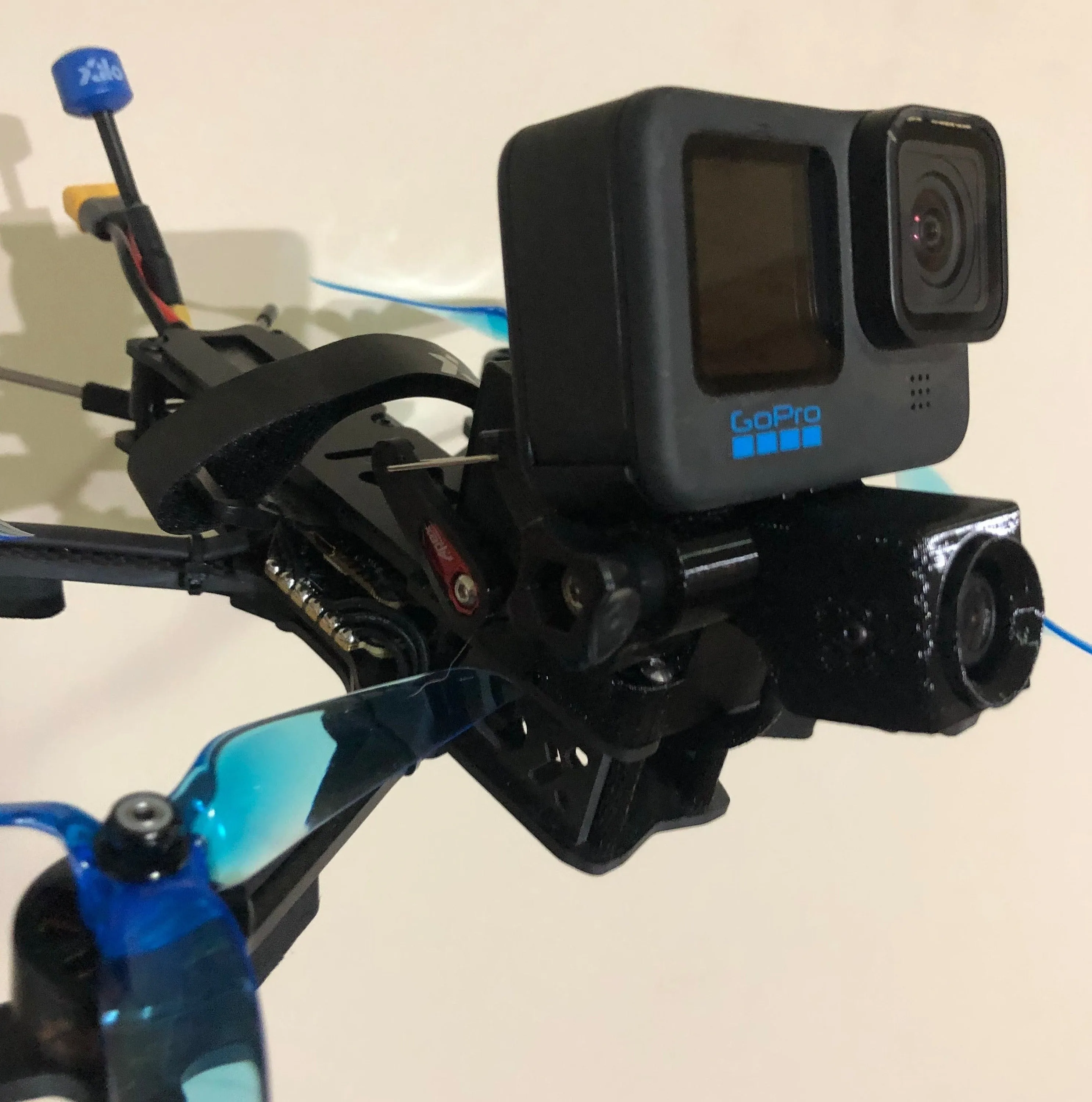

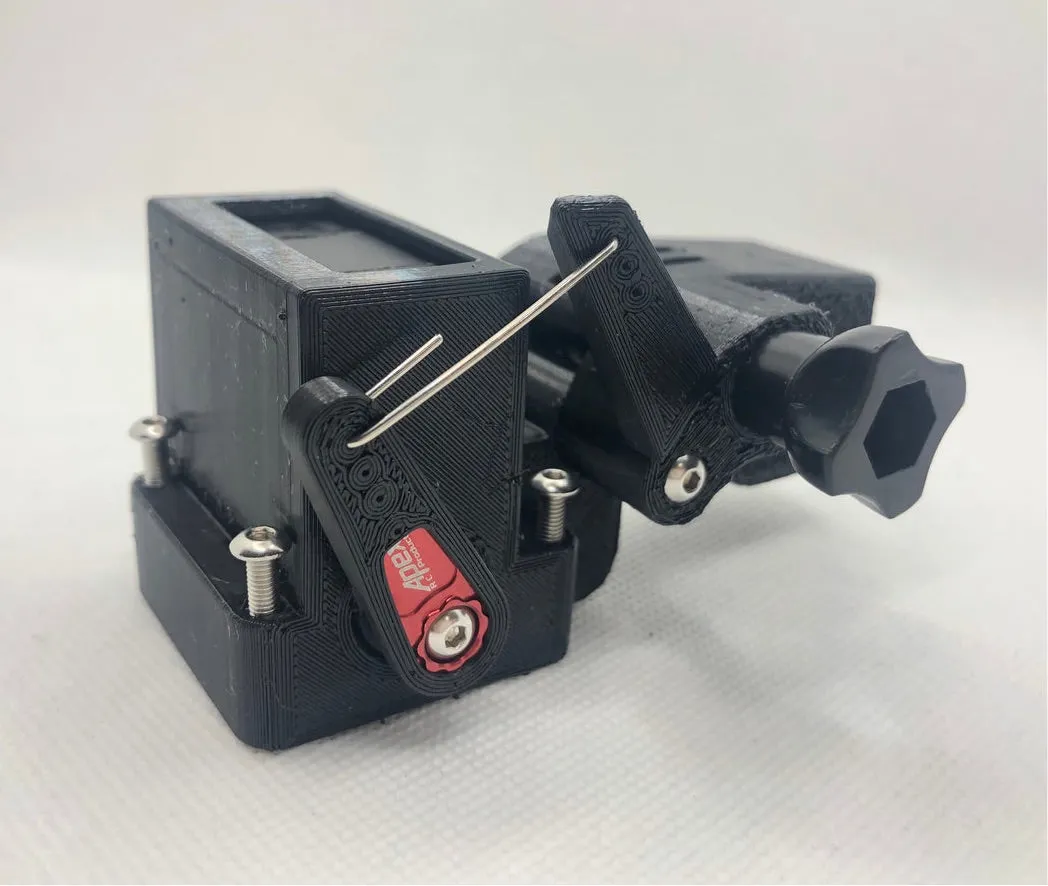

Full kit for adding a Medlin Drone single-axis FPV gimbal. This kit comes mostly preassembled and configured!
This gimbal can be controlled dynamically via as well as various or flown fixed-angle while simply controlled on your transmitter via a dial/slider to adjust camera angle mid-flight.
If there is not a kit for your frame available, you can for almost any frame.
Works with Analog, DJI O3/O2, HDZero, Walksnail Avatar, etc. FPV systems, may require depending on your setup.
Please Note: FPV camera extension cable is not included, cables for DJI / and are sold separately. To power the servo you will need 5V and ground, we sell a .

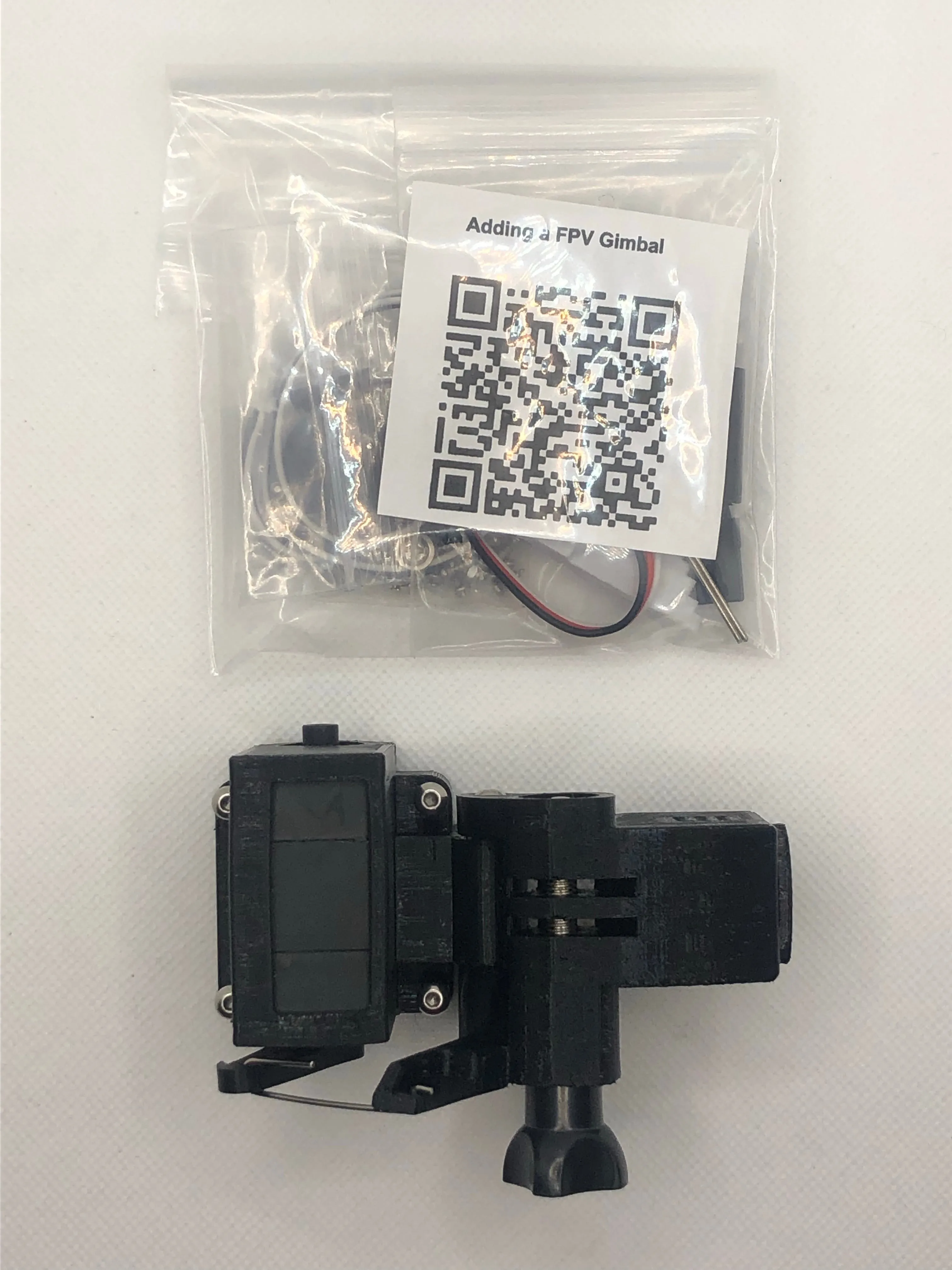

Kit Includes:

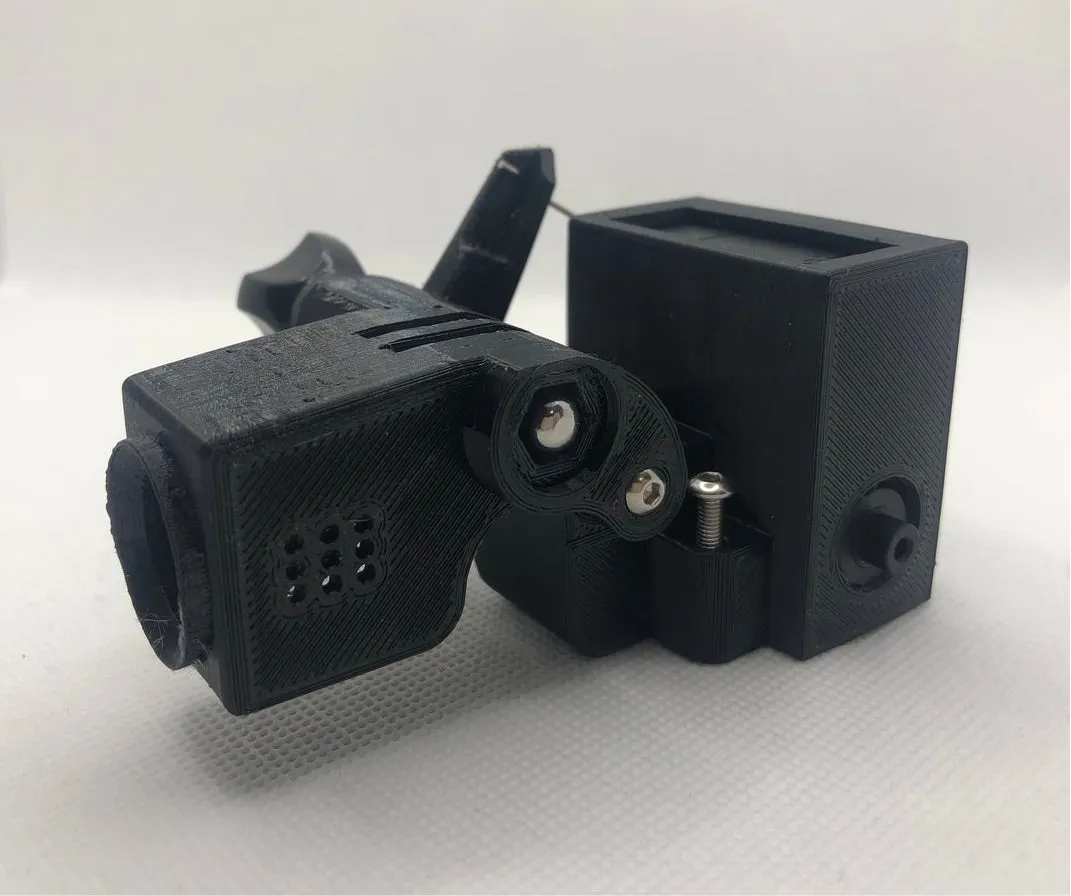

-3D Printed Gimbal Design
-1x Digital Metal Gear High Quality Servo - LDX-218
-1x Servo Horn - Apex RC CNC Machined Aluminum Servo Horn
-1x Servo Horn Sleeve/Insert
-2x Sealed Steel Ball Bearings
-1x 30mm M3 Standoff/Axle
-3x Steel Servo Linkage Wire
-1x Servo Linkage Wire Bending Jig 20-30mm
-1x Capacitor 100uF 10V
-1x Servo Extension Cable
-2x Stainless Steel M3 Gimbal Axle Screws
-4x Stainless Steel M2/M3 Mounting Screws
-1x Wire Shielding
-2x Shrink Tubing
----
Please allow lead time for printing, printing is done on an as-needed basis to avoid waste and is first-come first-serve.
Required:
-Soldering tools
-Flight controller running Betalight, iNav, or another Cleanflight variant, with available LED pin or unused motor output pin and available 5v and ground pins. However, if using TBS Crossfire or another receiver with ability to output an individual PWM signal on a spare output pad it can be used instead of the flight controller to control gimbal.
