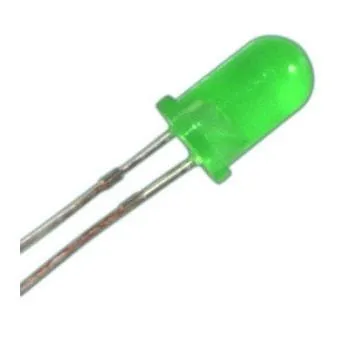

Green LED Lamp with 5MM diameter and a diffused lens

Parameter Conditions

• Forward voltage: max 3.0, IF=20mA
• Reverse breakdown voltage: min 5.0, IR=100 uA
• Luminous intensity: min 40mcd, Typ 70mcd, IF=20mA
• Peak wavelength: Typ 570nm, IF=20ma
• Spectral line halt width: Typ 20nm, IF=20ma

Absolute Maximum Ratings

• Power dissipation: @ Ta=25ТА C - 90mW
• Forward current: DC (IF) 30mA
• Reverse voltage: 5V
• Operating and storage temp: -55-100ТА C
• Lead soldering temp: (1/16" from body) 260ТА C for 5 sec
