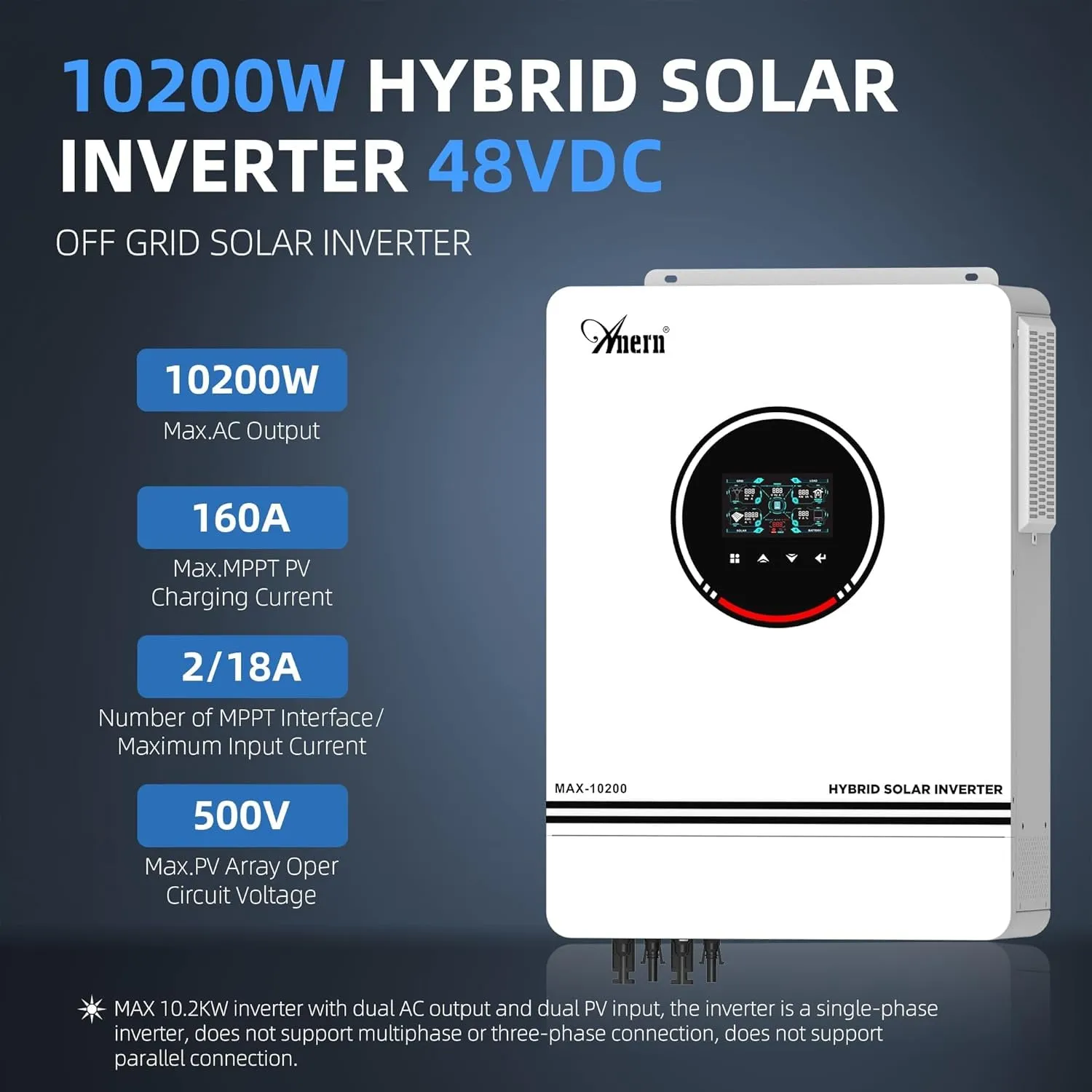

- 【All in one solar inverter】10.2KW 48VDC to 230Vac, off grid solar inverter with 160A MPPT solar charge and discharge controller. Maximum photovoltaic input power: 10200W; Photovoltaic operating voltage range: 90Vdc-450Vdc; Max PV no-load voltage: 500Vdc; Maximum PV charging current: 160Amp; Rated output current: 44.3Amp.

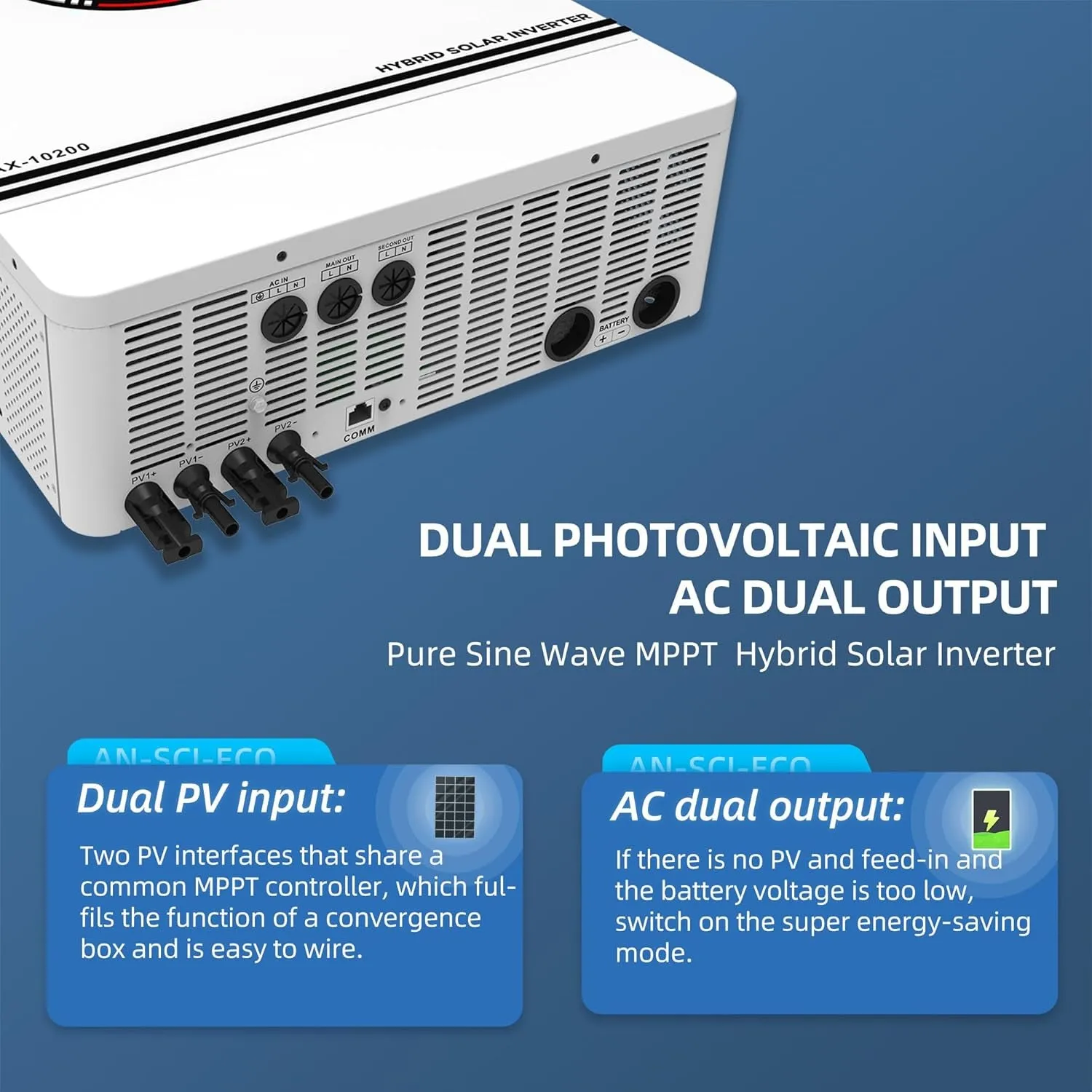

- 【Double PV Inputs/Double AC Outputs】Double AC Inputs - Unlike the single MPPT of the EXPRO, the dual inputs of the MAX have two independent MPPTs. Double AC outputs - Under normal conditions, the primary and secondary outputs are used normally. If there is no PV and mains power and the battery voltage is too low, the primary circuit will shut off and only the secondary output is maintained to save power.
- 【Remote monitoring】the inverter supports WIFI/GPRS remote monitoring, so you can get the desired data and operate this solar inverter at any time. (WiFi module is included in the kit).
- 【Multiple Charging & Output Modes】 3 charging modes are optional: solar, solar and utility only, solar priority; Output modes: solar priority, utility priority, SBU mode. The solar inverter provides multiple charging and output modes to meet different user application requirements.

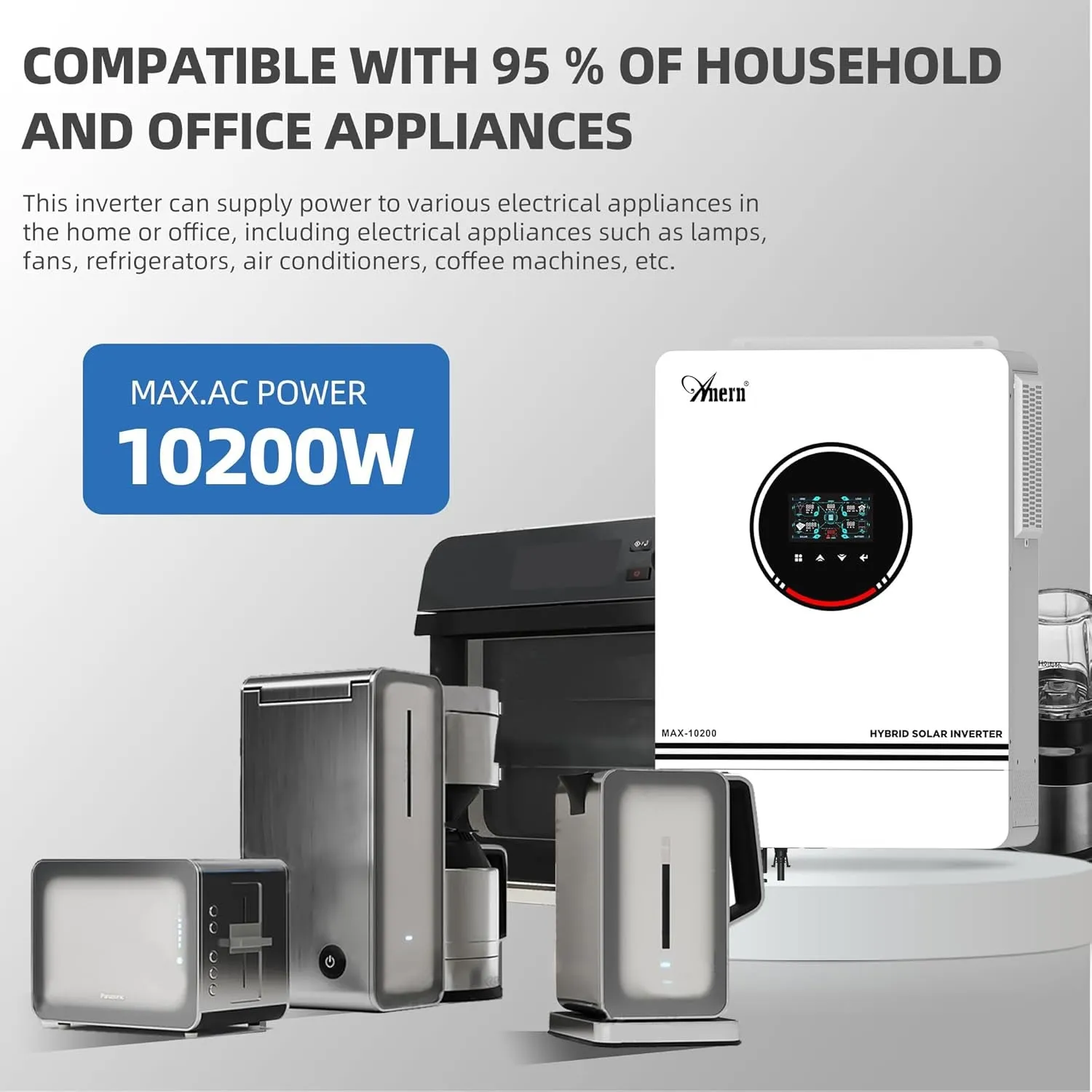

- 【Widely Use】This solar hybrid inverter adopts advanced pure sine wave technology, 48V Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD settingAConfigurable battery charging current based on applications via LCD setting Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
ASmart battery charger design for optimized battery performance
Cold start function

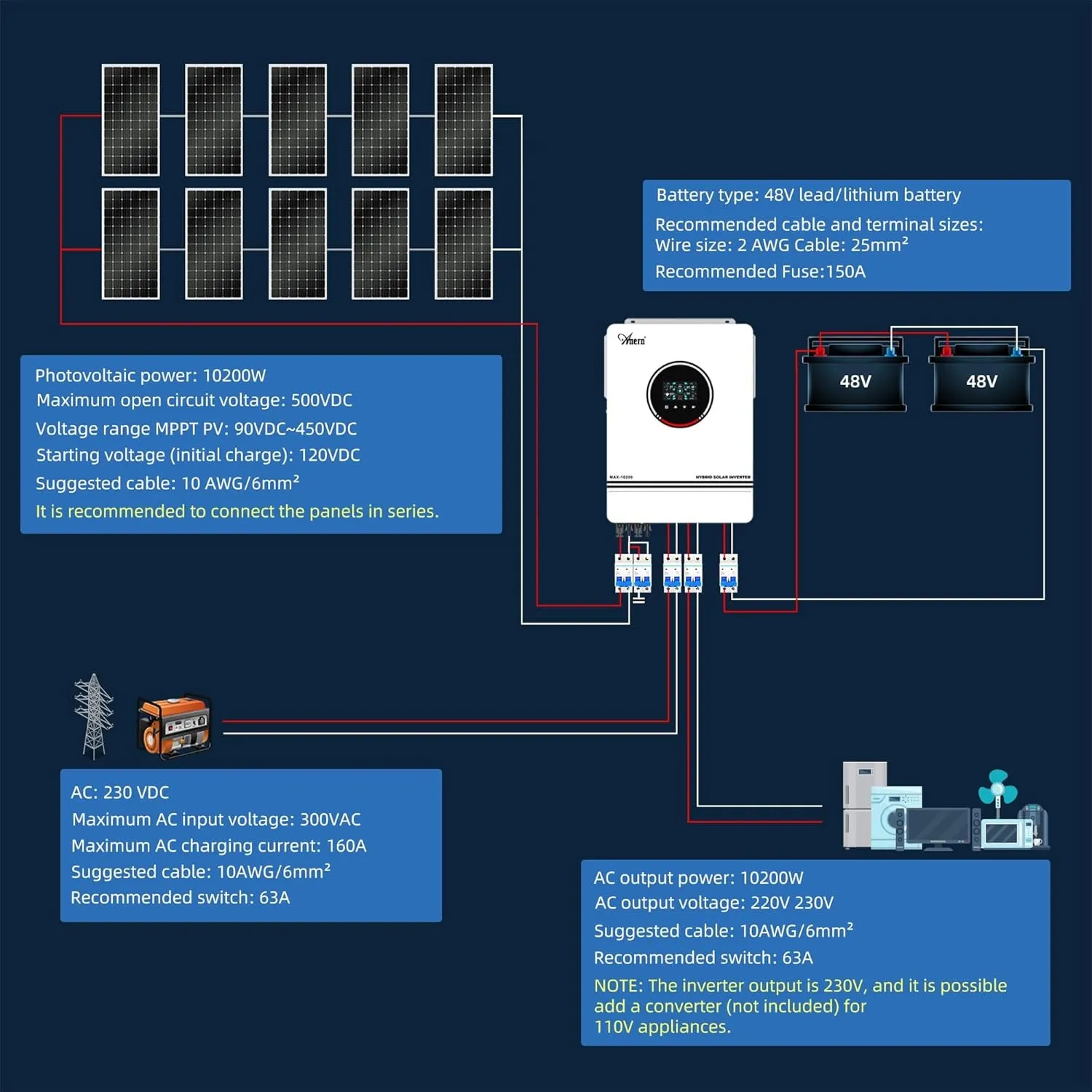

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air condition.
